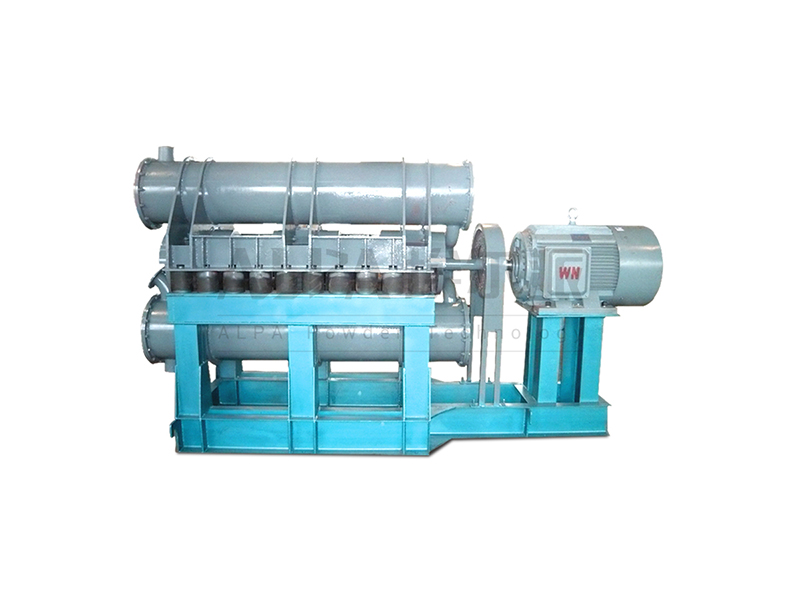

Vibration Mill-ALPA POWDER

The grinding media (rods, segments, balls) in the grinding cylinder do strong projectile motion, high-speed rotation motion and slow-speed revolution motion under the high-frequency vibration of the high-speed vibration exciter (or vibration motor). The material causes strong impact, friction, and shearing, so that the material is ultra-finely crushed and uniformly mixed.

Available D50:2.5～150μm
Suitable for grinding raw materials with Moh’s hardness below 9.
Compared with ball mill, higher grinding efficiency, small occupation.
Particle size can be adjustable by adjusting parameters such as grinding medium, amplitude, and frequency. The finer powder can be given in conjunction with classifier in series.
Grinding media and liners can be made of special materials such as high manganese steel, high chromium steel, stainless steel, alumina, zirconia, quartz, etc., which are wear resistant and less pollution.
Air spring or rubber spring, instead of hard spring, long service life, good damping effect and low noise.
Compact structure and small occupation.easy to disassemble and clean
Lower installation power, wide application, high cost-performance.
PLC control system, easy operation.
Suitable for powder mixing, surface coating,mechanical chemical modification, etc.
For heat sensitive and low melting materials, it can be crushed by water cooling or strong cooling.
Finer powder can be given if to be used with classifier.
Explosion-proof design can be selected to meet the requirements of ultra-fine grinding processing of flammable and explosive oxide materials.

With the high-speed vibrator or vibration motor, the grinding media (pins, cylpebs or balls) would vibrate in high frequency, high-speed rotating and slow revolving, which would impact, rub and shear materials around them and make them into fine powder and mix them evenly.

Medium and small Amplitude Vibration Mill Technical Parameter

Parameter	MZ10	MZ30	MZ50	MZ100	MZ200	MZ300	MZ500
Chamber Volume(L)	10	30	50	100	200	300	500
Input Particle Size (mm)	5	5	5	10	10	10	10
Produce Size (μm)	10-150	10-150	10-150	10-150	10-150	10-150	10-150
Production Capacity (kg/h)	1-5	5-20	10-50	20-150	50-300	100-500	150-800
Power (kW)	0.75	1.5	2.2	3.7	7.5	11	15

Big Amplitude Vibration Mill Technical Parameter

Parameter	MZ100	MZ300	MZ500	MZ600	MZ800	MZ1000	MZ1200	MZ2000
Chamber Volume(L)	100	300	500	600	800	1000	1200	2000
Input Particle Size (mm)	5	5	5	5	5	5	5	5
Produce Size (μm)	10-150	10-150	10-150	10-150	10-150	10-150	10-150	10-150
Production Capacity (kg/h)	100-200	200-300	300-600	400-800	500-1000	800-1500	1000-1800	2000-3000
Power (KW)	15	45	55	75	90	110	150	220

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
