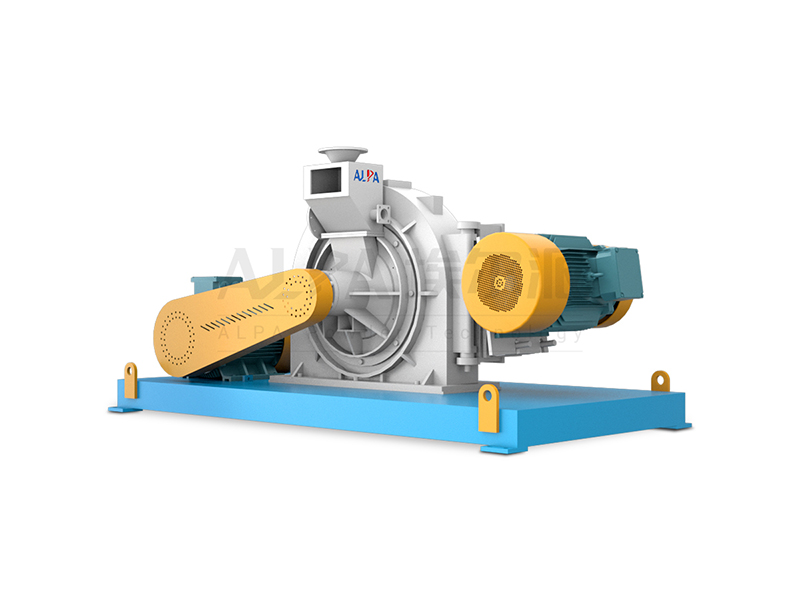

Pin Mill

Adopting German technology, high-precision machinery mill, continuous technological innovation and upgrading, suitable for 60-1250 mesh (250μm-10μm).

Inquire Now marketing@alpapowder.com

Product Description

Widely used in chemical, inorganic salt, medicine, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials and other industries.
Adopting German technology, high-precision machinery mill, continuous technological innovation and upgrading, suitable for 60-1250 mesh (250μm-10μm).

Performance characteristics

Available D50:10-45μm.
No sieve, smooth discharge, high capacity and low operation cost.
High line speed, finer particle size.
Compact structure and small occupation. easy to disassemble and clean
Lower installation power, wide application, high cost-performance.
Different installation combinations, applicable to different process requirements
Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
PLC control system, easy operation.
Single or double drive, if upgraded to dual power, reaching 200m/s or more line speed, to obtain the maximum grinding force
The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand.
Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time.
Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials.
High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different grinding requirements of different materials.

Working principle

Pin mill(pin mill grinding, micro pin mill, fine pin mill, pin mill grinding, pin mill Crush, pin mill pulverizer, pin grinding equipment) is a mill machine that grind materials by action of pins that repeatedly move past each other, it breaks up substances through repeated impact.

It is a type of vertical shaft impactor mill and consists of two rotating discs with pins embedded on one face. The discs are arrayed parallel to each other so that the pins of one disk face those of the other. The substance to be homogenized is fed into the space between the disks and either one or both disks are rotated at high speeds.

Pin mills can be used on both dry substances and liquid suspensions, they can achieve particle sizes as low as a few micrometers.

Material is evenly fed into grinding chamber by feeding devices, strongly impacted by high-speed rotating disc. At the same time, it is subjected to various comprehensive forces such as friction, shearing and collision between the static disc and rotor disc to grind material. The rotor disc and static disc can be combined in different structural forms according to nature of material to meet the grinding requirements of different materials.

ALPA is China’s largest pin mill manufacturer and supplier. We have an advanced factory that offers unique processes and designs.

Technical parameter

Parameter		160	250	360	500	630	800
Turbo B	Grinding Disc Diameter（mm）	150	250	350	500	600	720
	Max Rotate Speed（r/min）	12000	7500	5550	3850	3200	2800
	Power（kW）	3~4	5.5~7.5	11~15	18.5~30	30~45	37~75
	Produce Size (Mesh)	20~325
	Production Capacity（kg/h）	5~50	15~200	25~500	30~1200	50~1800	60~2000
Pin Type P	Grinding Disc Diameter（mm）	160	260	360	520	630	730
	Max Rotate Speed（r/min）	12000	7500	5550	3850	3200	2800
	Power（kW）	4	7.5	15~22	37	45~55	55~75
	Produce Size (Mesh)	20~325
	Production Capacity（kg/h）	20~200	35~1000	50~2000	75~3000	100~5000	200~10000

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
