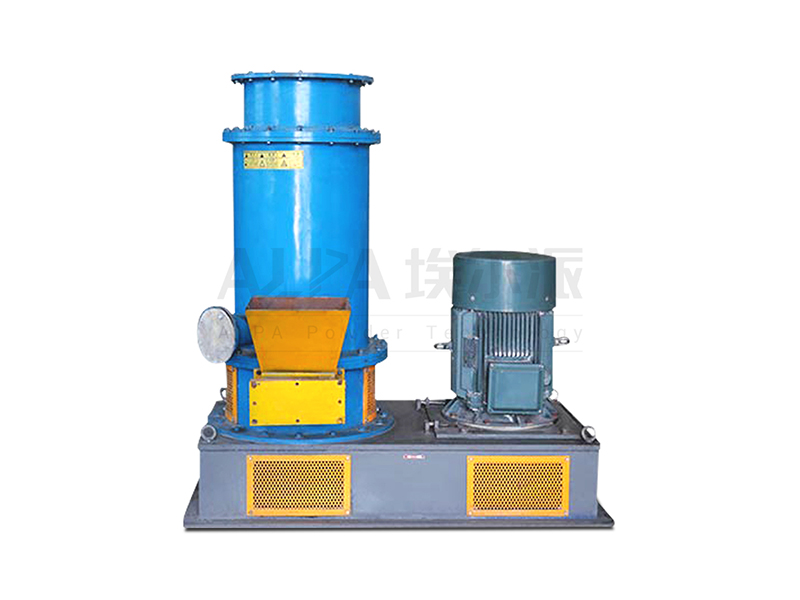

Cell mill

The drying and dispersing modified rotor mill is a very efficient mechanical mill with multiple rotors on its vertical shaft. Multi-layer grinding cutter head, strong shearing force and breaking power, can be connected to hot air source for multiple purposes, and realize the functions of drying, dispersing and modifying at the same time.
When the machine is running at high speed, it drives a strong air flow, allowing the agglomerated powder particles to stay in the internal stator of the machine. The stator is designed in a special groove shape. The wind pressure and wind speed form a strong vortex, which will generate shear, friction, and centrifugal force, which will quickly roll the material into single particles and restore them to the original particle size or natural crystal particles.


• Available D50:1～250μm.
• Integration of grinding and drying, high efficiency, low cost operation.
• Operation temperature up to 400℃, insulation design to bearing.
• Grinding head and lining are replaceable and can be selected based on different raw materials.
• The grinding chamber is welded by mild steel or stainless steel.
• Rugged seismic base.
• Special flange connection.
• The bearing assembly has an air purge design to prevent dust from entering.
• Relubricable bearing assembly design.
• Chain safety device.
• Compact structure and small occupation. easy to disassemble and clean.
• Lower installation power, wide application, high cost-performance.
• Grinding is in closed system, low dust and noise, clean and environmentally friendly production process.
• PLC control system, easy operation.
• Optional wear protection parts.
• Externally heated air, Achieve drying and dispersing functions at the same time. The grinding and dispersing area is under the action of the high-speed rotor, the material is in full contact with the hot air, fully heat exchange, moisture is taken away effectively, the heat source is more efficiently utilized. Energy saving 30%-50% compared with traditional drying processing.
• Built-in classifying wheel, oversize particle could be ground in circulation.

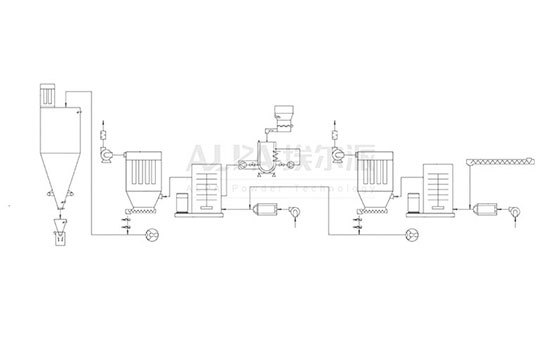

• Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time.
• Explosion-proof design can be selected to meet the requirements of ultra-fine grinding processing of flammable and explosive oxide materials.

When the equipment is running at high speed, it drives the strong air flow, so that the agglomerated powder particles stay in the stator of the equipment, and the stator is designed as a special groove. The strong vortices formed by wind pressure and wind speed will produce shear force, friction force and centrifugal force, which can quickly break the materials into single particles and reduce them to the original particle size or natural crystal particles.

Note:

The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above parameters are for reference only, please consult our engineers for details.
